A-A-52536
2.2 Design and construction. The design, construction, and physical dimensions shall be as specified in Figure 1.
|
PIN |
MS Part No. |
Former Part No. |
Wire gage |
Inch-Pound |
|
|
“A” DIA ± 0.002 |
“B” DIA ± 0.002 |
||||
|
AA525236-1 |
MS27148-1 |
572930 |
12 |
0.252 |
0.098 |
|
AA525236-2 |
MS27148-2 |
572929 |
14 |
0.177 |
0.086 |
|
AA525236-3 |
MS27148-3 |
572931 |
16 |
0.160 |
0.071 |
NOTES:
1. Dimensions are in inches. Unless otherwise specified, tolerances are ± 0.007 inches and 1 degree (°) angle.
2. The use of asterisks (*) indicates that dimensions are covered by international agreements (see 6.4).

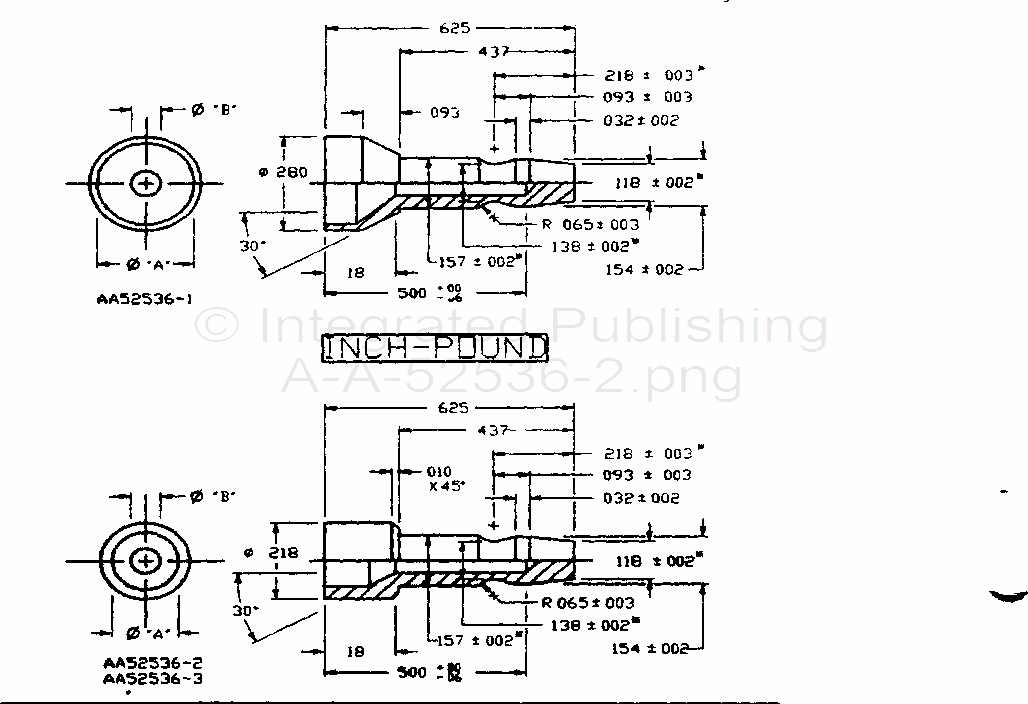

FIGURE 1. Electrical contact design and construction.
