A-A-55485/3C
Inches
mm
.015
0.38
.025
0.64
.050
1.27
.075
1.91
.220
5.59
.260
6.60
.340
8.64
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tolerance on height of pad shall be ±.015 (0.38 mm).
4. Unless otherwise specified, tolerances are ±.010 (0.25 mm) for decimals and ±1° on angles. A
.010 (0.25 mm) radius is permissible on corners and edges. A 1° draft is permitted on sides.

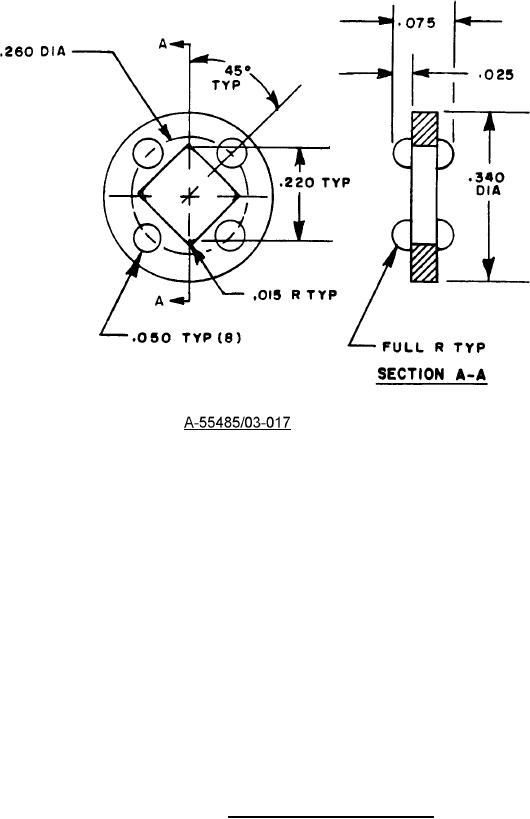

Figure 1. Configurations and dimensions - Continued.
10
