A-A-55485/4A
A-55485/04-019
Inches
mm
.020
0.51
.025
0.64
.030
0.76
.032
0.81
.038
0.97
.040
1.02
.050
1.27
.080
2.03
.235
5.97
.275
6.99
.280
7.11
.300
7.62
.390
9.91
.470
11.94
.500
12.70
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tolerance on height of pad shall be ±.015 (0.38 mm).
4. Unless otherwise specified, tolerances are ±.010 (0.25 mm) for decimals and ±1° on angles. A .010
(0.25 mm) radius is permissible on corners and edges. A 1° draft is permitted on sides.

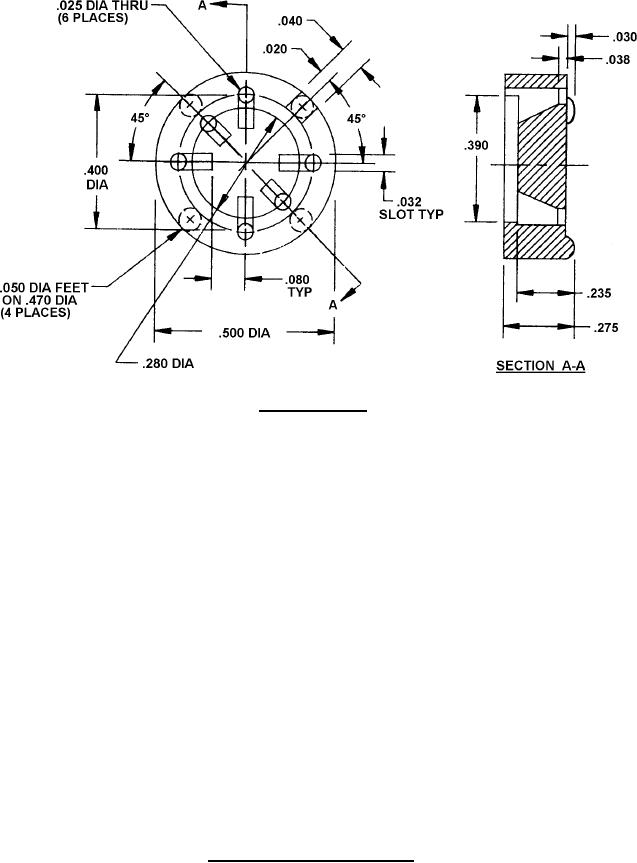

FIGURE 1. Configurations and dimensions - Continued.
13
