A-A-55485/7A
Inches
mm
.040
1.02
.045
1.14
.071
1.80
.100
2.54
.115
2.92
.140
3.56
.180
4.57
.200
5.08
.215
5.46
.375
9.53
.430
10.92
.545
13.84
.594
15.09
1.187
30.15
A-55485/07-006
Inches
mm
.025
0.64
.062
1.57
.078
1.98
.141
3.58
.203
5.16
.250
6.35
.375
9.53
A-55485/07-007
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are given for general information only.
3. Tolerance on height of pad shall be ±.015 (0.38 mm).
4. Unless otherwise specified, tolerances are ±.010 (0.25 mm) for decimals and ±1° on angles. A .010
(0.25 mm) radius is permissible on corners and edges. A 1° draft is permitted on sides.

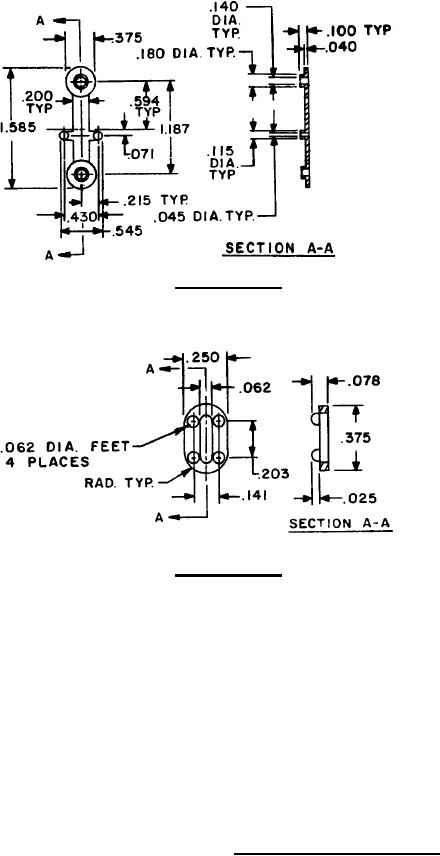

FIGURE 1. Configurations and dimensions - Continued.
4
