INCH-POUND
MIL-DTL-55422/1A
15 December 2001
SUPERSEDING
MIL-C-55422/1
23 February 1965
DETAIL SPECIFICATION SHEET
CLIP, ELECTRICAL, GRID
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall
consist of this specification and the latest issue of MIL-DTL-55422.
NOTES:
1. Dimensions are in inches; metric millimeter equivalents are given in parenthesis and are for general information
only.
2. Drawing depicts only general design characteristics and is not intended to limit specific manufacturing
processes.
3. Material - beryllium-copper alloy. Finish tin plate.Tolerance on flash shall be ±.008 (0.20 mm) on the extension
and ±.005 (0.13 mm) on the thickness.

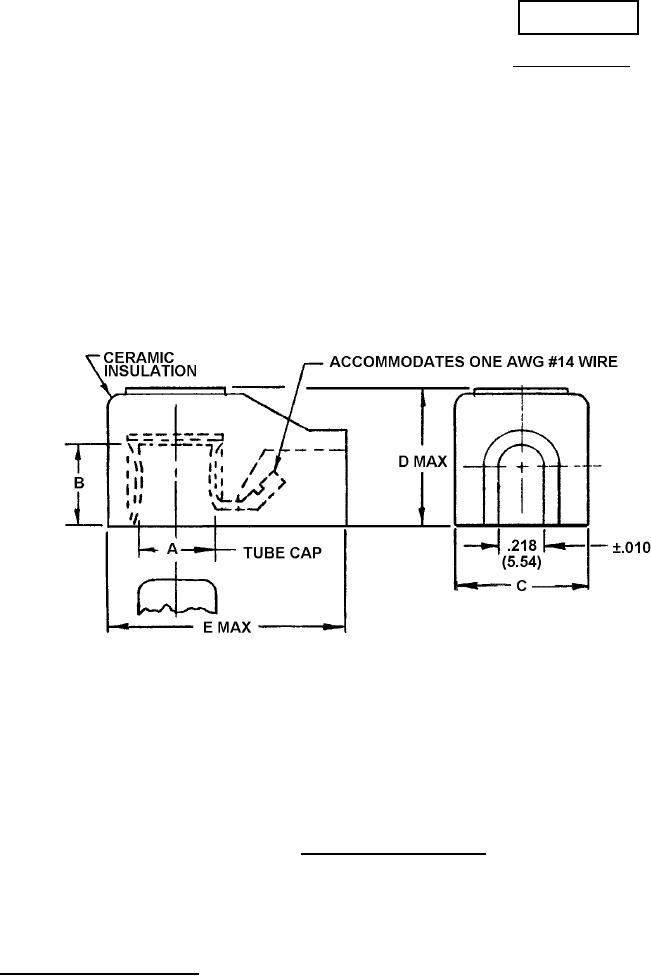

FIGURE 1. Dimensions and configurations.
AMSC N/A
1 of 2
FSC 5999
DISTRIBUTION STATEMENT A . Approved for public release; distribution is unlimited.
