INCH-POUND
MIL-DTL-83528/5E
15 August 2013
SUPERSEDING
MIL-DTL-83528/5D
15 November 2001
DETAIL SPECIFICATION SHEET
GASKETING MATERIAL, CONDUCTIVE, SHIELDING GASKET, ELECTRONIC,
ELASTOMER, EMI/RFI, O-RING, NON-STANDARD
This specification is approved for use by all Departments
and Agencies of the Department of Defense.
The requirements for acquiring the relay described herein shall
consist of this specification sheet and the latest issue of MIL-DTL-83528.
NOTES:
1. Dimensions are in inches; metric equivalents are given in parenthesis and are for general information only.
2. Tolerance on flash shall be ± .008 (0.20 mm) on the extension and ± .005 (0.13 mm) on the thickness.

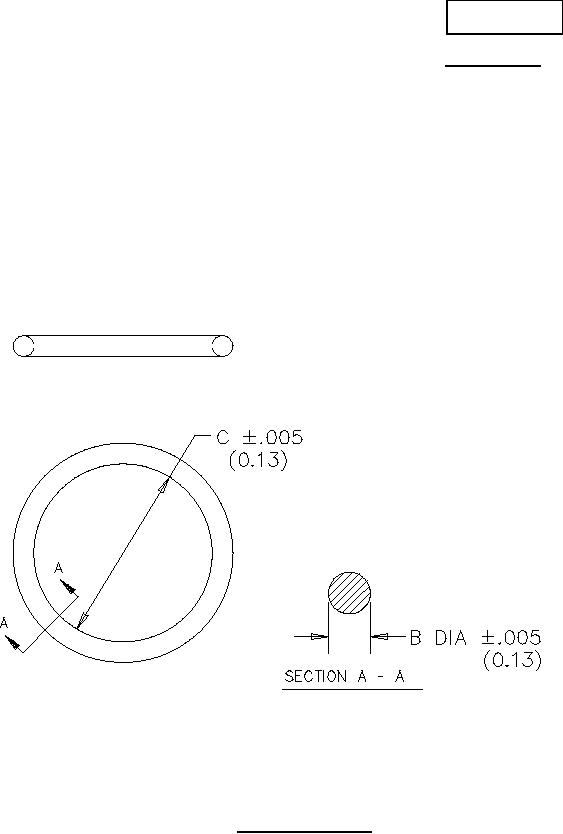

FIGURE 1. EMI/RFI O-ring gasket.
AMSC N/A
FSC 5999
