MIL-PRF-83532/1B
Output rise time (applied to leading edge only): 5 ns maximum. Measurement conditions (-55°C ≤ TC ≤ +125°C):

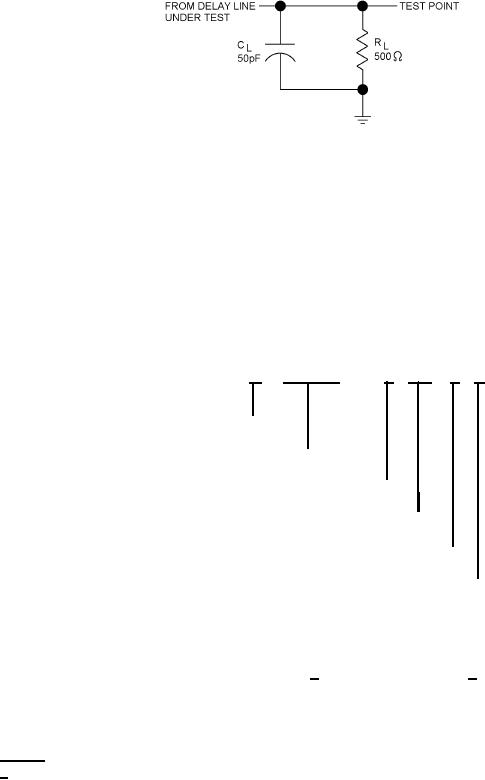

VCC = 5.0 V dc; TRI ≤ 3 ns. The load circuit shall be as follows (CL includes probe and test fixture capacitance):
DC parameters (over operating temperature range): See table III.
Rated maximum load (fan-out): Ten TTL Schottky loads per tap (no more than 20 TTL Schottky loads per unit).
Terminations: Part terminations shall be printed-circuit pin type in accordance with MIL-PRF-38534.
Operating temperature: Operating temperature range shall be -55°C to +125°C.
Number of sections: Five sections minimum, except for dash numbers 001 through 005 which shall have four
sections minimum.
Part or Identifying Number (PIN): The PIN shall be in the following format:
83532/01
A
001
B
C
M
Military designator M or C ________
Specification sheet number ______________
Case style A, B, C, or D (see MIL-PRF-83532 appendix) __
Dash number (see table I) ______________________________
Product assurance level A, B, or S (see MIL-PRF-83532) __________
Lead finish (see MIL-PRF-83532) ________________________________
VERIFICATION
Extent of qualification: The extent of qualification shall be as specified in MIL-PRF-83532, for example:
Qualification and testing of M83532/01A001A* 1/ and M83532/01A031A* 1/ shall be sufficient to grant
qualification to all dash numbers with case style A contained in this specification sheet. Similarly, for case styles
B, C, and D, qualification and testing of dash numbers 001 and 031 shall be sufficient to grant qualification to all
dash numbers in this specification sheet having the same case style as the components tested.
______
1/ * - Asterisk represents any of the applicable finishes.
Product assurance level: Product assurance level A shall not extend to level B. Level B shall not extend to level A.
5
