MIL-PRF-83532/2C
Output rise time (applied to leading edge only): 5 ns maximum. Measurement conditions (-55°C ≤ TC ≤ +125°C):

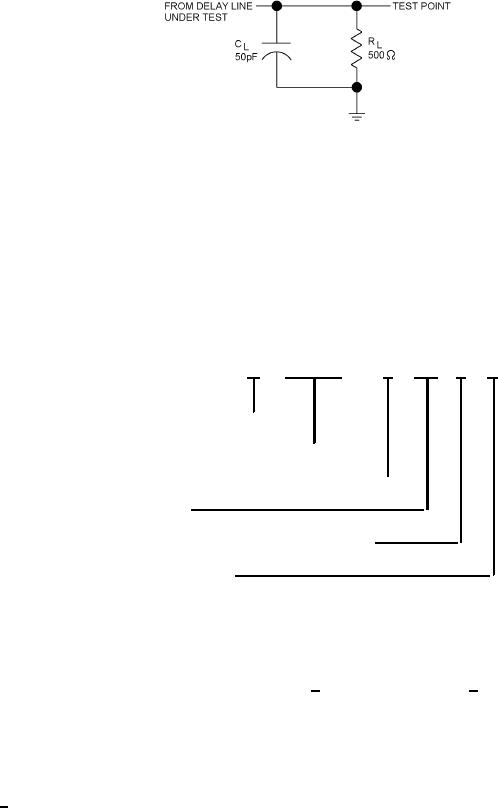

VCC = 5.0 V dc; TRI ≤ 3 ns. The load circuit shall be as follows (CL includes probe and test fixture capacitance):
DC parameters (over operating temperature range): See table III.
Rated maximum load (fan-out): Ten TTL Schottky loads per tap (no more than 20 TTL Schottky loads per unit).
Terminations: Part terminations shall be printed circuit pin type in accordance with MIL-PRF-38534.
Operating temperature: Operating temperature range shall be -55°C to +125°C.
Number of sections: Ten sections minimum, except for dash numbers 001 through 005 which shall have eight
sections minimum.
Part or Identifying Number (PIN): The PIN shall be in the following format:
83532/02
A
001
B
C
M
Military designator M or C ________
Specification sheet number _______________
Case style A, B, C, or D (see MIL-PRF-83532 appendix) __
Dash number (see table I) _______________________________
Product assurance level A, B, or S (see MIL-PRF-83532) ___________
Lead finish (see MIL-PRF-83532) __________________________________
VERIFICATION:
Extent of qualification: The extent of qualification shall be as specified in MIL-PRF-83532, for example:
Qualification and testing of M83532/02A001A* 1/ and M83532/02A031A* 1/ shall be sufficient to grant
qualification for all dash numbers with case style A contained in this specification sheet. Similarly, for case
styles B, C, and D, qualification and testing of dash numbers 001 and 031 shall be sufficient to grant
qualification for all dash numbers in this specification sheet having the same case style as the components
tested.
______
1/ * - Asterisk represents any of the applicable finishes.
5
